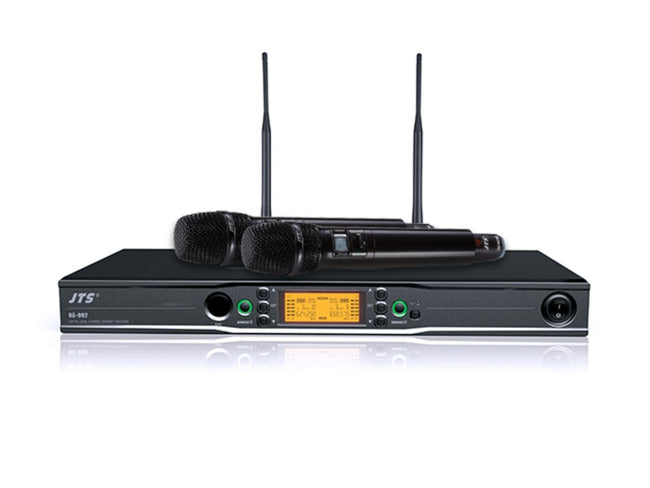

The RU-992/RU-G3TH x 2 system. This version comes with 2 handheld wireless microphones.
RU-992 system is a full rack version of RU-8012DB series with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

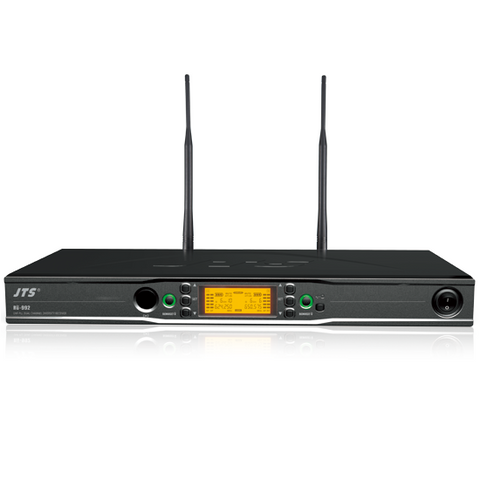

RU-992 (Receiver)
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 470~960 MHz
Frequency Setting: Ultrasonic / REMOSET (Transmit)
Receiving Mode: Antenna Diversity
Bandwidth: 36MHz
S/N Ratio: >105dB(A)
T.H.D: <0.6%@1KHz
Sensitivity: -95dBm,S/N>80dB
Rejection Ratio: >80 dB
Frequency Response: 50Hz~16KHz±2dB
Antenna Type: BNC Socket
Antenna Booster Power: DC12~15V/100mA
Display: LCD
Display Contents: Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls: Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Level: Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance: 600Ω
Squelch: Pilot Tone & Noise Mute
Output Connector: 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply: DC12~15V/300mA
Dimension (mm): 420mm(W)* 44mm(H)* 211mm(D)
Notes: Acutal product specifications may vary depending on region

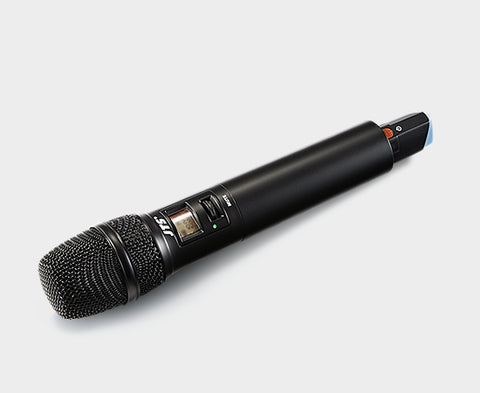

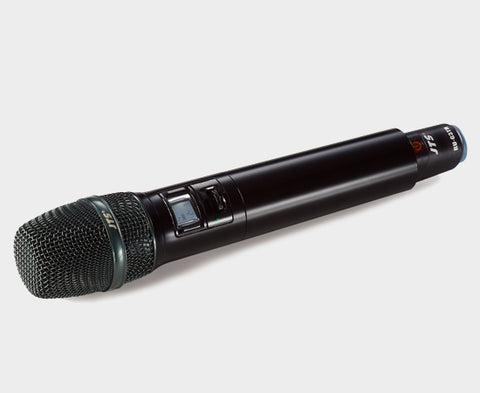

RU-850LTH (Microphones)
Frequency Preparation: PLL Synthesized Control
Carrier Frequency Range: 470~960MHz
Frequency Setting REMOSET U(Receive)
RF Outpus: Low / High
Stability: <±10KHz@Fc
Frequency Deviation: ±48KHz
Spurious Emissions: <-50dBc
Function: Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display: LCD+LED
Controls: Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery: UM3, AA x2
