Prolight Video Cloth System 6 x 3m (inc. Flightcase)

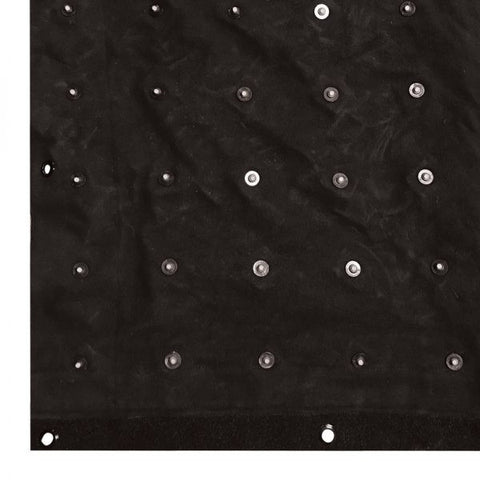

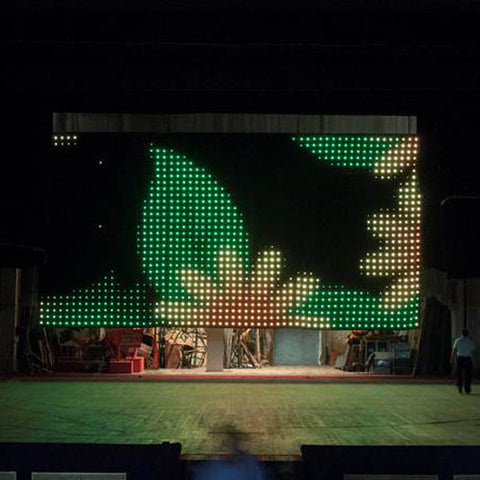

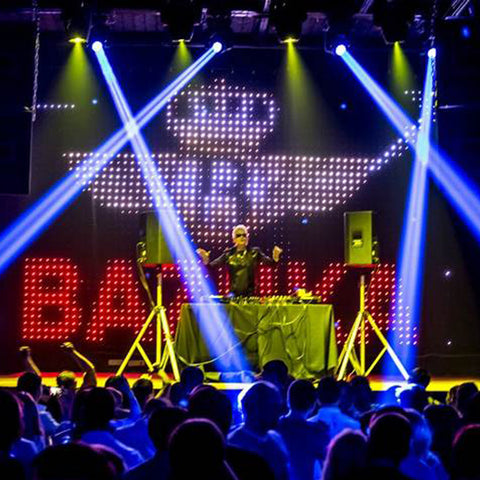

The LEDJ Animation system allows creation of video effects with flexible, lightweight drapes. Display low to medium resolution still images, videos, and flash animations. Individual images can be configured across multiple drapes with single control to produce large animated surfaces. The curtains are finished with hook and loop fasteners for easy panel joining in any direction. The system comes supplied with animation cloth, power boxes, main controller and sub controller all inside a heavy duty flight case. The included controller allows connection of an additional 7 cloths.

File formats:
SWF, AVI, WMV, MPG, MPEG, ASF, MPV, MPA, VCD, RM, RA and RMJ video files
BMP, JPG, GIF, PCX, WMF, ICO and PNG
Text

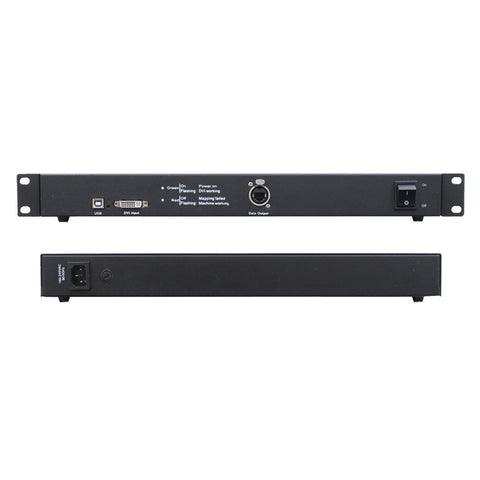

Main/Sub Controller:
One main controller can run up to 60 sub-controllers
Main controller features DVI input (accepts HDMI over DVI)
Video resolutions: 1024 x 768, 800 x 600, 1280 x 768, 1600 x 1200
Refresh rates: 60Hz, 70Hz, 72Hz, 75Hz, 80Hz

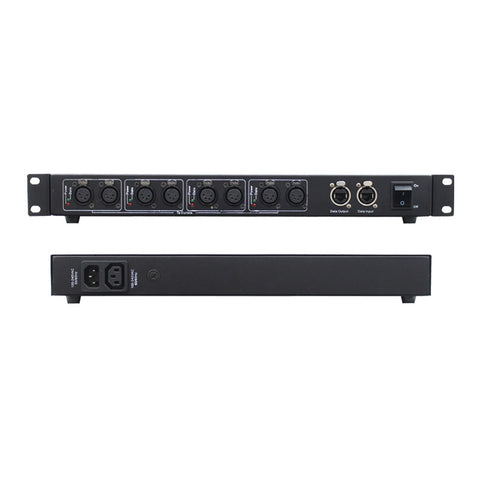

Sub-controller: four outputs, each 2560 pixels, 10240 total

Computer Specifications:
Operating System: Windos XP, Vista, Windows 7, Windows 8 and Windows 10
Hardware min requirements: CPU 1.5GHz, 512MB RAM, 100M network card
Pixel pitch: 100mm

Specifications
Starcloth Dimensions: 6 x 3m
Starcloth Weight: 34kg
Main Controller Dimensions: 44 x 494 x 180mm
Main Controller Weight: 2.6kg
Sub Controller Dimensions: 44 x 484 x 220mm
Sub Controller Weight: 3.4kg
Power Box Dimensions: 56 x 350 x 320mm
Power Box Weight: 4.5kg (each)

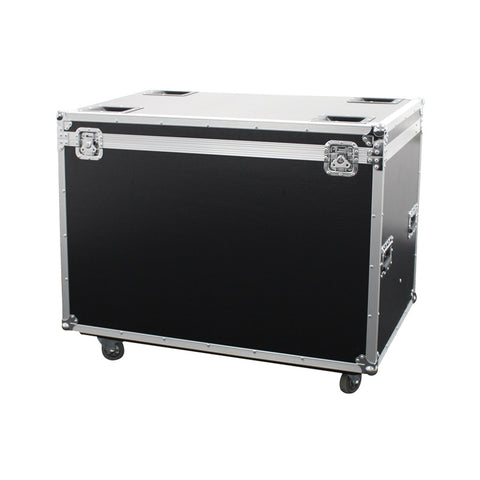

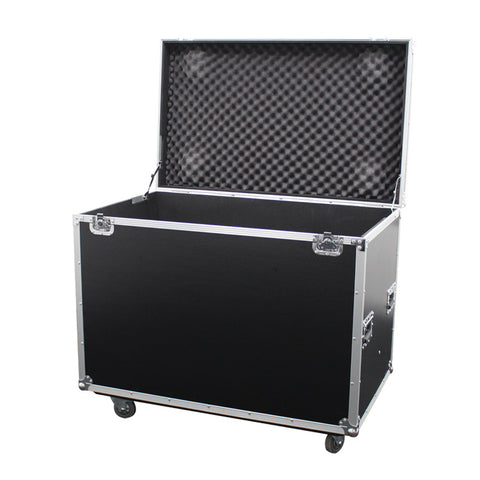

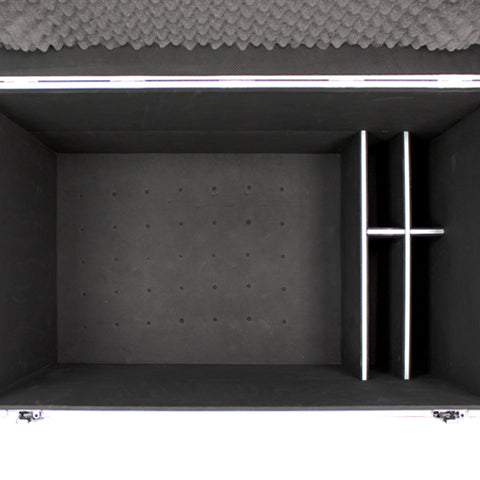

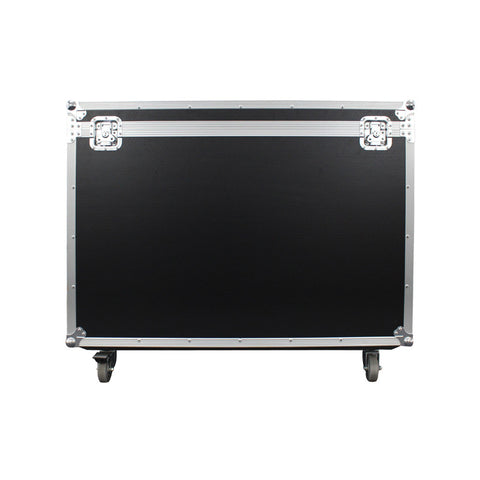

Flightcase Dimensions: 830 x 660 x 675mm
Flightcase Weight: 35kg
