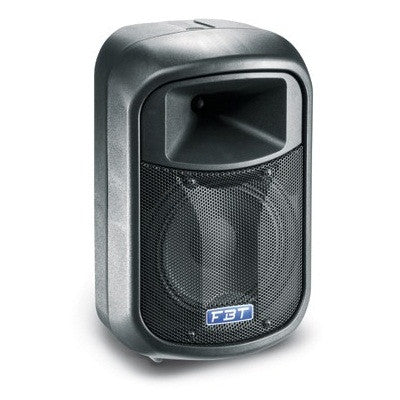

FBT J8 Passive Speaker


FBT J8 Passive Speaker


The FBT J 8 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black or white finish the FBT J8 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.
With the use of optional accessories the FBT J8 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.
The FBT J8 is of two way design incorporating an 8" low frequency woofer and 1" HF custom compression driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2.5kHz. With a frequency range of 65Hz - 20kHz the FBT J8 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 121.5dB.
A front face steel grille protects the speaker from external damage.
Ideal for small fixed installations the FBT J8 speaker system have an impedance of 8 Ohm. The two M6 fly points built into the cabinets along with the optional mounting brackets allow the FBT J8 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J8 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.

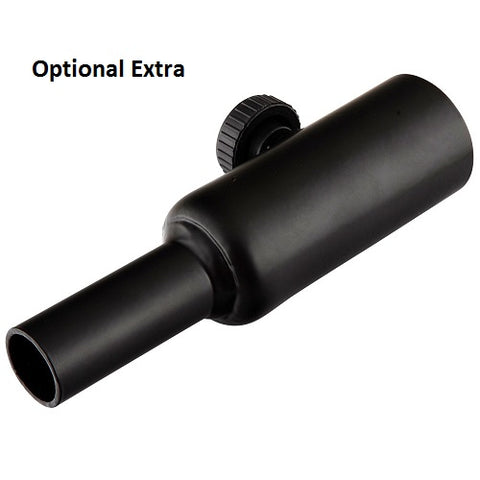

Speaker can be ordered with or without adaptor - adaptor is required if you wish to mount the J8 cabinet on a standard 35mm speaker stand.

2-way passive sound reinforcement system
Polypropylene enclosure
1 x 8" custom woofer
1 x 1" high frequency driver
160W RMS recommended amplifier
80W long term power
320W short term power IEC 268-5
2 x M6 suspension points
Internal passive crossover filter
Input panel with 2xSpeakon NL4
Available in white color
Completely manufactured in Italy
96.5dB Sensitivity

Configuration:     2 way
Frequency response:     65Hz - 20kHz
Low Frequency woofer:     8
High Frequency driver:     1
Maximum SPL cont/peak:     118.5 / 121.5dB
Dispersion:     90 x 60 (HxV)
Input impedance:     8 ohm
Crossover Frequency:     2.5kHz
Net Dimension (WxHxD):     255 x 415 x 245mm / 10.03 x 16.33 x 9.64in
Net Weight:     6.6kg / 14.55lb
Transport Dimension (WxHxD):     330 x 480 x 320mm / 12.99 x 18.89 x 12.59in
Transport Weight:     8.1kg / 17.85lb
