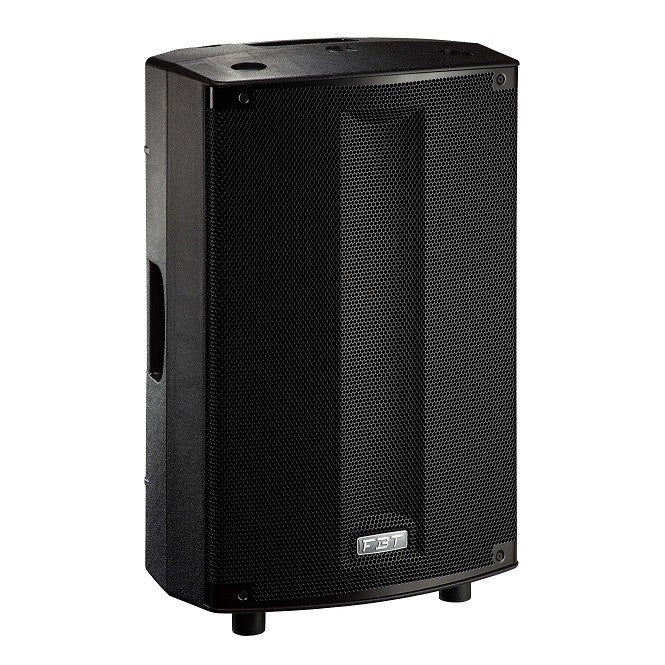

FBT ProMaxX 114A Powered Speaker
Presets for every occasion - PRO MAXX offers 6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.
ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximise speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasise full-bodied, low-mid frequencies.
FEATURES
2-way, bi-amplified, bass reflex design cabinet
Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with graphic display
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
3550mm (15") LF woofer with 64mm (2.5") voice coil, custom made for FBT
35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
Frequency response from 45Hz to 20KHz
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
Extremely light only 17.4kg
Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL
SPECIFICATIONS
Configuration: 2 Way
Built in amplifier: 900w (700w LF + 200w HF)
Built in amplifier peak: 1800w (1400w LF + 400w HF)
Frequency Response: 45Hz - 20kHz -6dB
Low Frequency Woofer: 14" with 3" VC
High Frequency driver: 1.4" with 2.5" VC
Maximum SPL continuous/peak: 127/135.5dB SPL
Dispersion (HxV): 90° x 60°
Input Impedance: 22kOhm
AC power requirements: 640VA
Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
