FBT

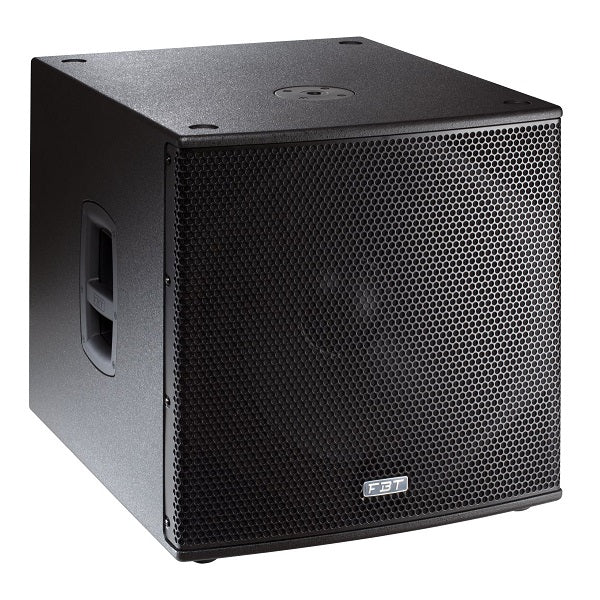

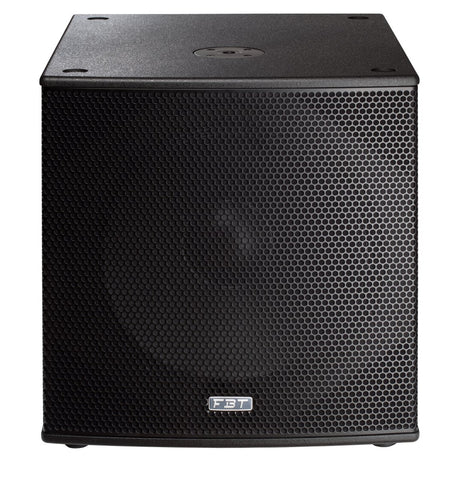

FBT Subline 118SA Active Subwoofer
The SUBline series has been completely redesigned and consists of 112SA, 115SA, 118SA, 218SA active and 118S and 218S passive subwoofer models, all bass-reflex , built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.
Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers
Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
FEATURES
Bass-reflex design subwoofer
460 mm (18”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
Frequency response from 33Hz - 100Hz
1200W RMS Class D power amplifier with switch mode power supply
Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m

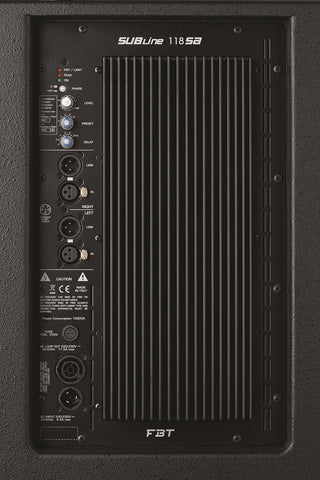

Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
SPECIFICATIONS
Built-in amplifier LF/HF: 1200 W RMS
Built-in amplifier peak LF/HF: 2400 W
Frequency response: 33Hz-100Hz -6dB
Low Frequency woofer: 18 - 3 coil mm
Maximum SPL cont/peak: 134/137 half-space dB
Dispersion: omnidirectional HxV
Input impedance: 22 Kohm
Crossover Frequency: 100Hz KHz
AC Power requirements: 800 VA
Input connector: stereo XLR with loop
Power cord: 7/16.4 m
Net Dimension (WxHxD): 555x572x666 / 21.8x22.5x26.2 mm
Net Weight: 44.5 kg
Transport Dimension (WxHxD): 800x642x800 / 31.5x25.3x31.5 mm
Transport Weight: 54.5kg
