The SUBLINE series consists of 12Sa, 15Sa, 18Sa and 218SA active subwoofers, and passive models - 18S and 218S, built in birch 5/8” plywood with scratch & scuff resistant paint finish. Aimed to extend the low frequency response to a wide range of FBT speaker systems. Designed in 2x18” and 18” bass-reflex, 15” and 12” band-pass.
They have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker. IN/OUT stereo, it is possible to use only one subwoofer with Left and Right satellites.
Additional optional wheels, ergonomic integrated carrying handles and light cabinet allow an easy transport.

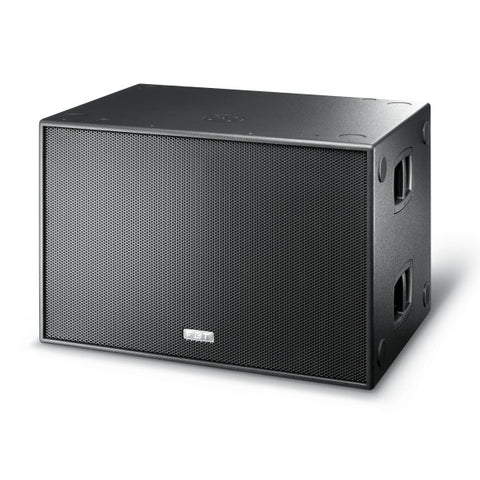

Bass-reflex design Subwoofer
460mm (18”) high excursion woofer with 75mm (3”) voice coil, custom made for FBT by B&C
Frequency response from 33Hz – 120Hz
1200W RMS Class D power amplifier with switch mode power supply
Digital Signal Processor with 6 presets, 3 equalization with 2 LPF Crossover Settings, Digital 6 step delay line
Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED Indicators
15mm (5/8”) Baltic birch plywood cabinet with scratch & scuff resistant paint finish
M20 (20mm) top mount speaker stand socket, two aluminum carrying handles
Provides additional low frequency reinforcement when used along with 2 – way EvoMaxX speakers.
Configuration: 1 Way bass reflex
Built-in amplifier LF/HF: 1200W RMS
Built-in amplifier peak LF/HF: 2400w
Frequency response: 30Hz - 120Hz
Low Frequency woofer: 2x 18
Maximum SPL cont/peak: 136 / 140db
Input impedance: 22kohm
AC Power requirements: 1000VA
Input connector: Stereo XLR with Link and HP Filter out
Power cord: 5m TrueCon1
Net Dimension (WxHxD): 970 x 661 x 670mm
Net Weight: 81kg
Transport Dimension (WxHxD): 1150 x 780 x 800m
Transport Weight: 94kg
DUE TO SIZE AND WEIGHT OF PRODUCT, POSTAGE MUST BE QUOTED SEPARATELY. PLEASE CALL OR EMAIL US FOR DETAILS.
