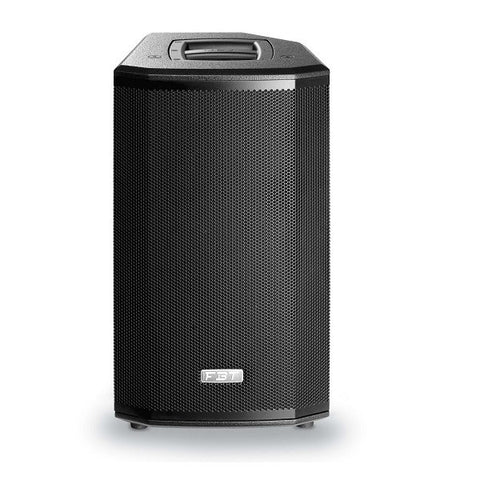

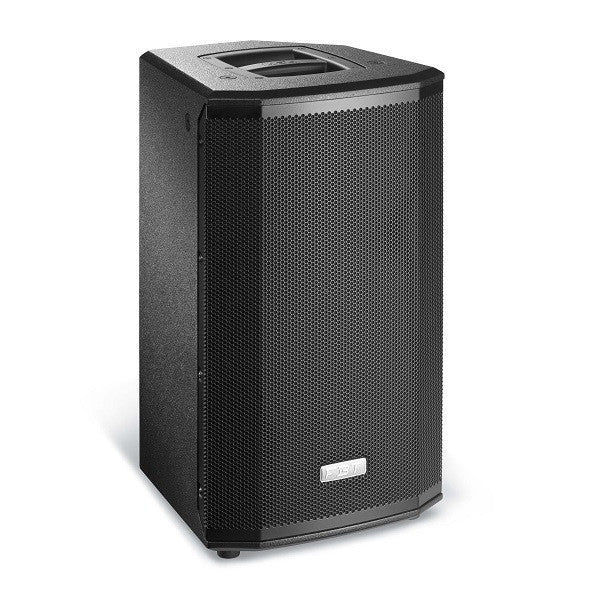

FBT Ventis 110 Passive Speaker

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

Features
2-way, bass reflex design
15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
Speakon NL-4 IN and LINK OUT connectors

Specifications
Net Dimension (WxHxD):     329 x 575 x 325mm
Net Weight:     15.1kg
Transport Dimension (WxHxD):     420 x 675 x 400mm
Transport Weight:     17.6kg
Configuration:     2 Way
Recommended Amplifier:     300w RMS
Long Term Power:     130w
Short Term Power:     600w
Nominal Impedance:     8 Ohm
Frequency Response:     60Hz - 18kHz -6dB
Low Frequency Woofer:     10" with 2" VC
High Frequency Driver:     1" with 1.4" VC
Sensitivity (@1W/1m):     97dB
Maximum SPL Continuous/Peak:     122/127dB
Dispersion (H x V):     80° x 50° rotatable
Crossover Frequency:     1.8kHz
Recommended HP Filter:     50Hz - 12-24dB/Oct
Input Connector:     2x Speakon
