FBT X-Lite 112A

Session Music

FBT X-Lite 112A

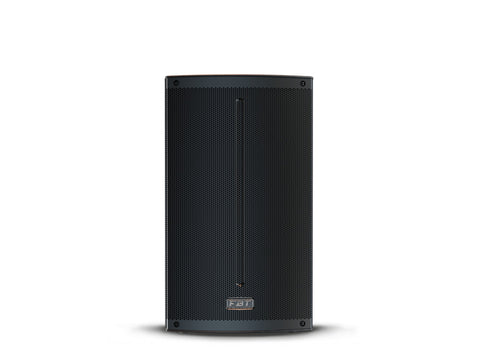

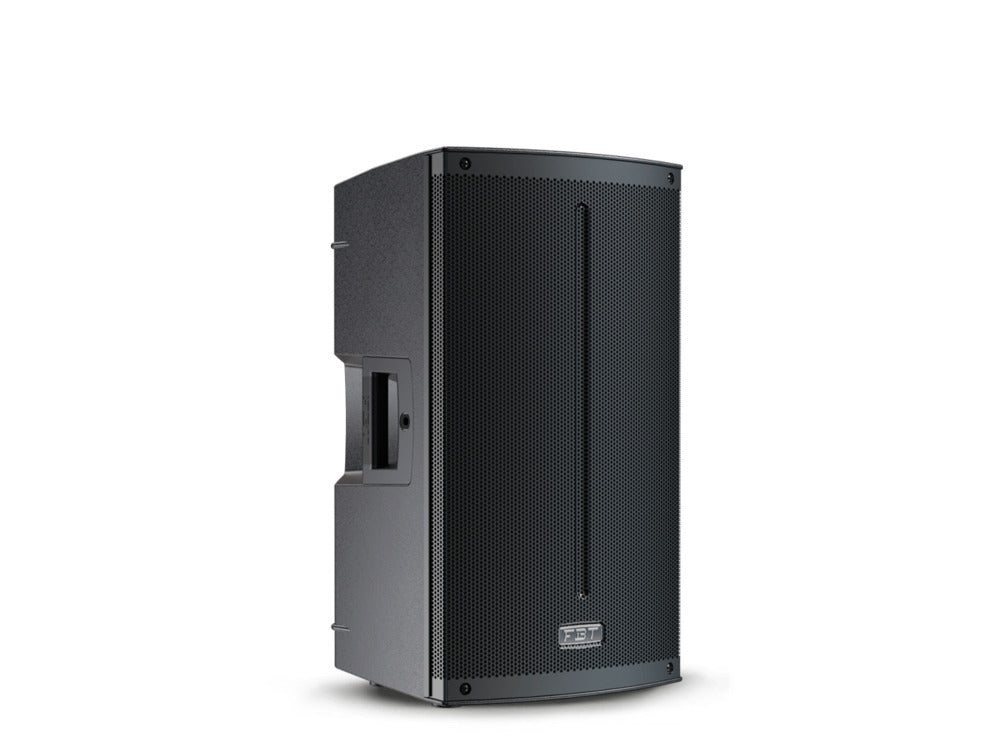

The FBT XLITE 112A is two way design incorporating a 12” low frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 50Hz - 20kHz the FBT X LITE 112A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 129dB.

The bi-amplified FBT X-LITE 112A active speaker feature a 1200W low frequency amp and a 300W high frequency amp.

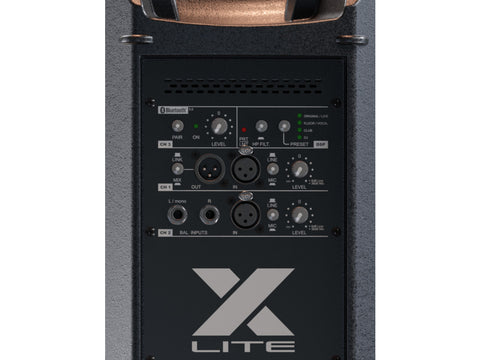

The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two xlr inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT X LITE 112 A speaker to be surface mounted on walls or ceilings.

A standard 1.38” speaker stand socket allows the FBT XLITE 112A to be mounted on speaker stand.


2 way bi-amplified bass reflex system
Polypropylene moulded enclosure
Custom 10" woofer (LF) / 2.5" voice coil
1" throat / 1.4" voice coil HF compression driver
1200w / 300w Built-In amplifier (LF / HF)
Bluetooth 5.0
3-Channel mixer
4 DSP Presets
30 degrees & 45 degrees monitor tapers
Universal switch mode power supply 100-240 VAC
M10 rigging points

Configuration : 2 Way
Frequency response : 58Hz - 20KHz
Low frequency woofer : 10" - 2.5" VC
High frequency driver : 1" - 1.4" VC
Maximum SPL cont/peak : 123/127 dB
Dispersion : 90 x 60
Input impedance : 22
Input connector : XLR IN/OUT
Net Dimension (WxHxD) : 300 x 536 x 301.5
Net Weight : 13 KG
Transport Dimension (WxHxD) : 370 x 615 x 380
Transport Weight : 14.8 KG
Built in amplifier peak : LF 1200w HF 300w
