HK Audio Lucas Nano 305 FX System

HK Audio

HK Audio Lucas Nano 305 FX System



LUCAS 305FX is a true all-rounder, featuring a 5-channel mixer, Bluetooth Audio Streaming and integrated reverb effects. The 10.3 kg system has the best sound-to-volume ratio on the market – the powerful bass and HiFi-esque sound at high SPL make listeners who can’t see the 305 FX imagine they’re experiencing a far larger and heavier system. The best thing about the compact NANO, though, is its flexibility and intuitive ease of use: simply connect an MP3 player via Bluetooth, a microphone, a guitar, or a keyboard, and you’re ready to go. This makes LUCAS NANO305 FX the ideal companion for many different sound system situations: be it for small acoustic concerts, as a party PA, karaoke evenings, barbecue parties with friends, Zumba courses in the gym or for background music and announcements at small events. LUCAS NANO305FX consists of an active system subwoofer and two satellites that are be stowed away in the subwoofer transport bay.

Active, multifunctional PA system

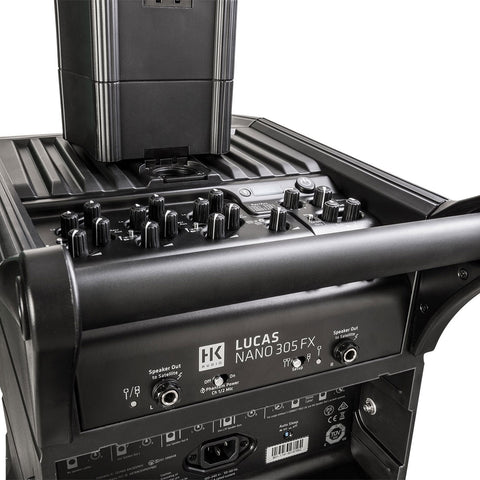

Integrated 5-channel mixer
Bluetooth Audio Streaming
7 on-board reverb effects
Two-band EQ for channels 1-3
phantom power for channels 1-2

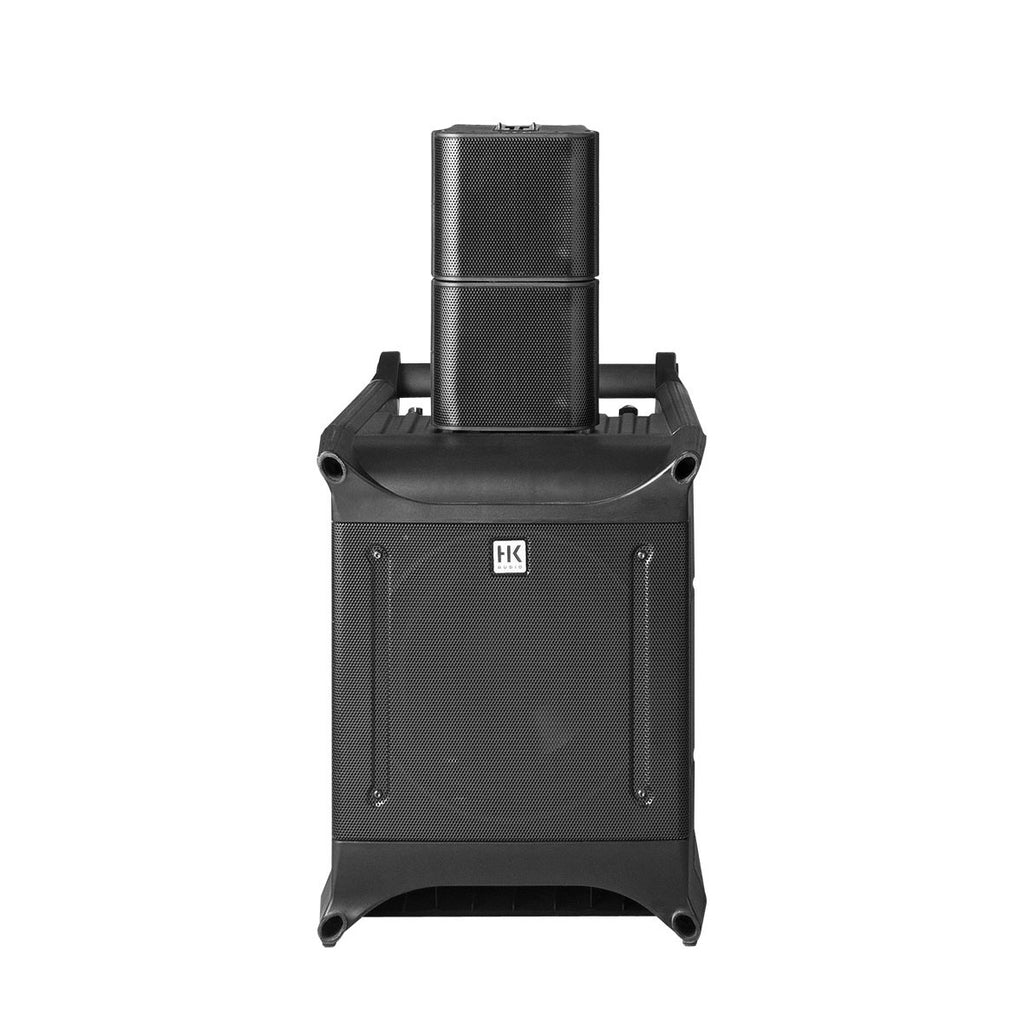

Optimized for use as a 2.1 Stereo system
Can be extended into a more powerful Twin Stereo System setup when used in conjunction with any other 300 series LUCAS NANO
Functions as an elegant Mono PA
Active 8” high-performance subwoofer
2 satellites with 3.5″ broadband woofers
all speakers custom-made by Celestion
750-watt peak power (calc.)
120 dB max. SPL
Low-ranging bass down to 44 Hz
Weighs just 10.3 kg

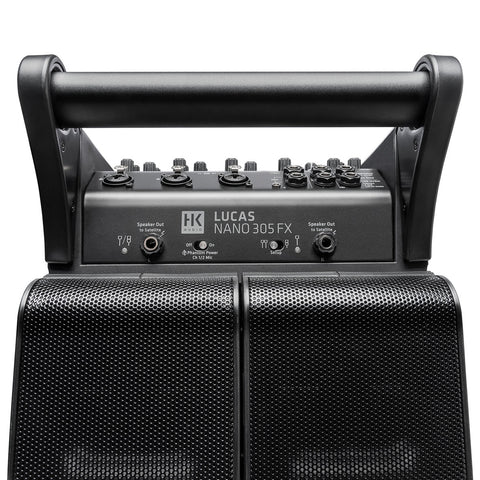

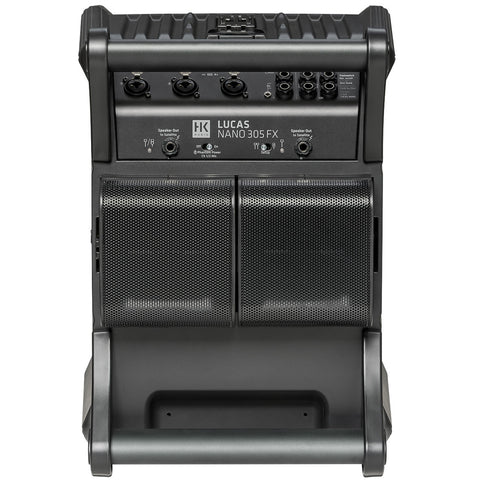

Satellite transport bay inside the subwoofer enclosure
Simple handling; assembles in seconds
High quality STEREO STAND ADD-ON from König & Meyer (available separately)
Height-adjustable, signal-carrying S-CONNECT POLE LN (available separately), for cable-free setup as Mono or Twin Stereo System setup
Designed and engineered in Germany
Five-year warranty (after registration)

Technical Data - LUCAS NANO 305 FX System
Product Class: Portable stereo PA system
Audience: up to 80
Frequency response -10 dB: 44 Hz - 20 kHz
Power Rating: 230 W (RMS)
Peak power (calc.): 750 W
Amplifier: Class D
Active protection circuits: MulitBand limiter, Subsonic filter, Thermo protection, Overload protection
Enclosure: Surface-coated Polypropylene
Optional accessories: Stereo Stand Add-on, S-Connect Pole LN, Add-on Package Two, Roller Bag, Link-Kabel
Weight: 10,3 kg / 22.7 lbs.

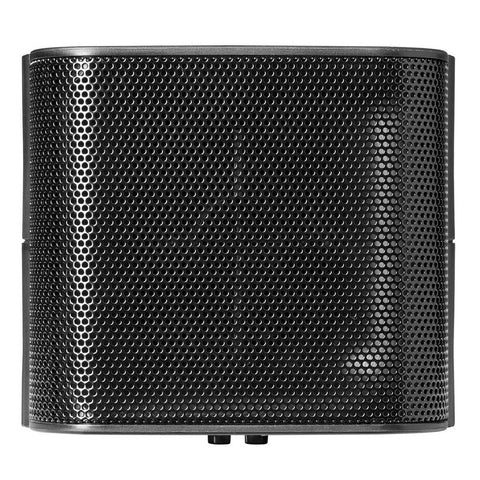

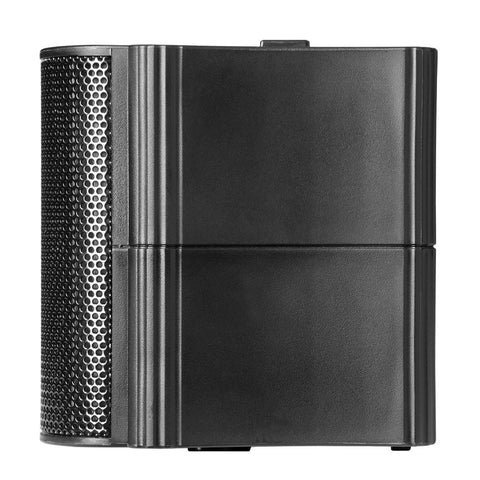

Technical Data - LUCAS NANO 300 Series Satellite Speakers
Max SPL peak: 120 dB (Satellite Array)@10%THD, Halfspace
Frequency response -10 dB: 190 Hz - 20 kHz
Mid/High Speaker: 3,5" Broadband (Celestion custom-made)
Mid/high unit dispersion pattern, horizontal/vertical: 60° x 40° (Single Satellite), 60° x 30° (Satellite Array)

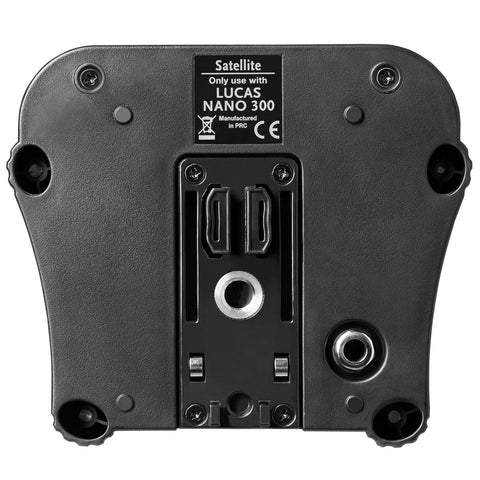

Pole mount: 3/8" thread
Dimensions (WxHxD): 13 x 13 x 11,5 cm
Weight: 1 kg / 2,2 lbs

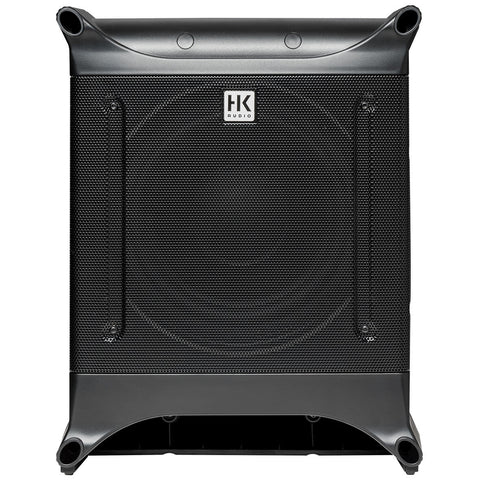

Technical Data - LUCAS NANO 305 FX Subwoofer
Max SPL peak: 118 dB@10%THD, half space
Frequency response -10 dB: 44 Hz - 190 Hz
LF Speaker: 8" Celestion custom-made

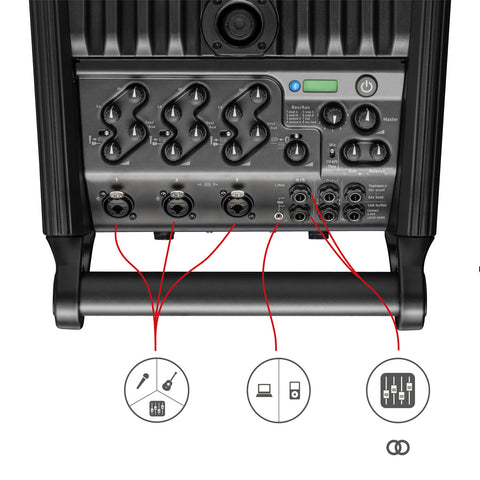

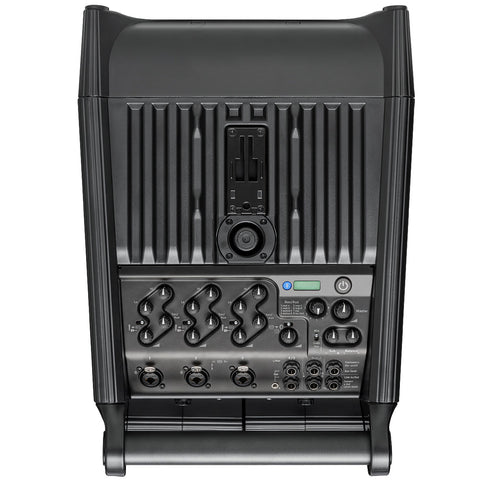

Inputs: 3x Combination 1/4" (6.3 mm)/XLR Ports, 2x 1/4" (6.3 mm) Jacks/Stereo Mini-Jack, Bluetooth In, Link In (for Twin Stereo Mode)
Outputs: Speaker Out, Easy-Click, Rec Out,Link Out for Twin Stereo Mode
Special Features: 5-Channel Mixer, 2-Band EQ for Channels 1-3, 7 Reverb Eff ects, Bluetooth Audio Streaming
Pole mount: M33 for the (signal-routing) S-CONNECT POLE LN, a speaker pole adapter sleeve (M33 to M20) is included
Dimensions (WxHxD): 30 x 39 x 42 cm
Weight: 8,3 kg / 18.3 lbs

Speaker Stands and leads not included - please contact us if you would like to add speaker stands and leads to your order.

Padded Trolley also Available
