Studiomaster Digilive16 Digital Mixer

Studio Master

Studiomaster Digilive16 Digital Mixer


Digilive16 - 16 Input, 16 Bus, 8 Output hybrid digital console.

Introducing the Studiomaster digiLivE16 mixer – 16 inputs, motorised faders, large touch screen, USB ports – everything you need for perfect live mixing. Digilive is the result of many years of R&D combining Studiomaster’s experience in signal processing with the latest technologies to give you total control over your sound.

Although ultra compact, digiLivE16 uses the full potential of our digital mixer expertise without compromising any features. All settings can be recalled including, most importantly, the faders – unique in this class of mixer. Full control is also available remotely via Wi-Fi so you are free to mix anywhere in the venue.

Ultra-compact, form factor, hybrid digital mixer
16 inputs (12 mic, 2 stereo) with 16 internal busses

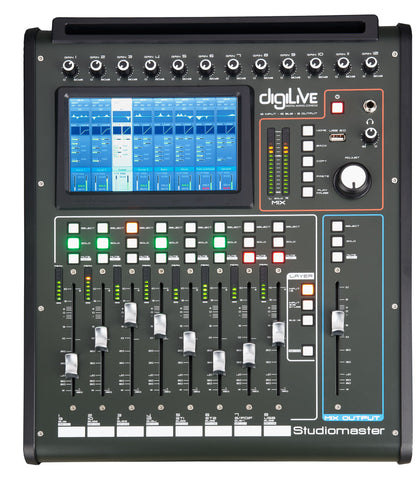

7" Intuitive high-resolution touch-screen display
Built-in media player/recorder

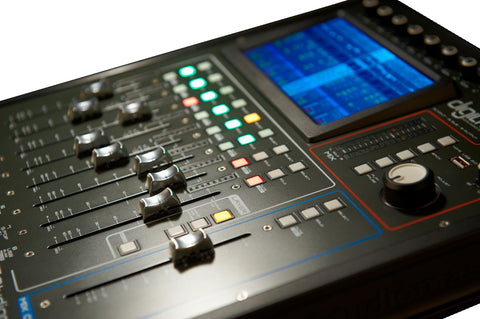

8 Motorised 100mm channel faders with layer select buttons
Motorised 100mm mix output fader
AD/DA conversion, 24bit/192kHz
8 Internal effects busses (with reverb, delay, 15-band EQ and modulation)
USB 2.0 ports for supporting playback, recording, scene storage and system updating (front and rear panel)
Wi-Fi and Bluetooth wireless connectivity are supported

Fully remote tablet operation (free downloadable iOS app)

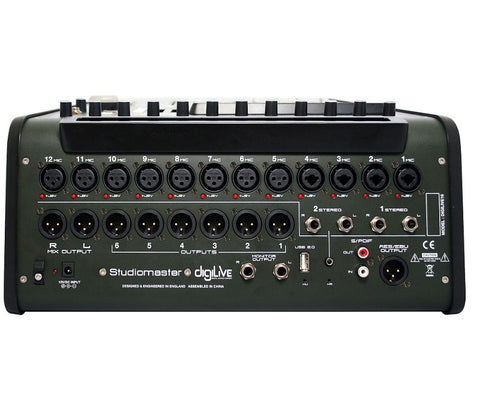

12 XLR Mic inputs with selectable phantom power
2 Stereo line inputs (1: L+R jacks, 2: L+R jacks & 3.5mm stereo jack)
8 Assignable XLR outputs (1-6 & L+R mix)
Monitor output (L+R jacks)
Headphone output (6.35mm stereo jack)
S/PDIF in/out (RCA)
AES/EBU output (XLR)
Power supply: 12V DC
Dimensions (WxHxD): 350x150x380mm
